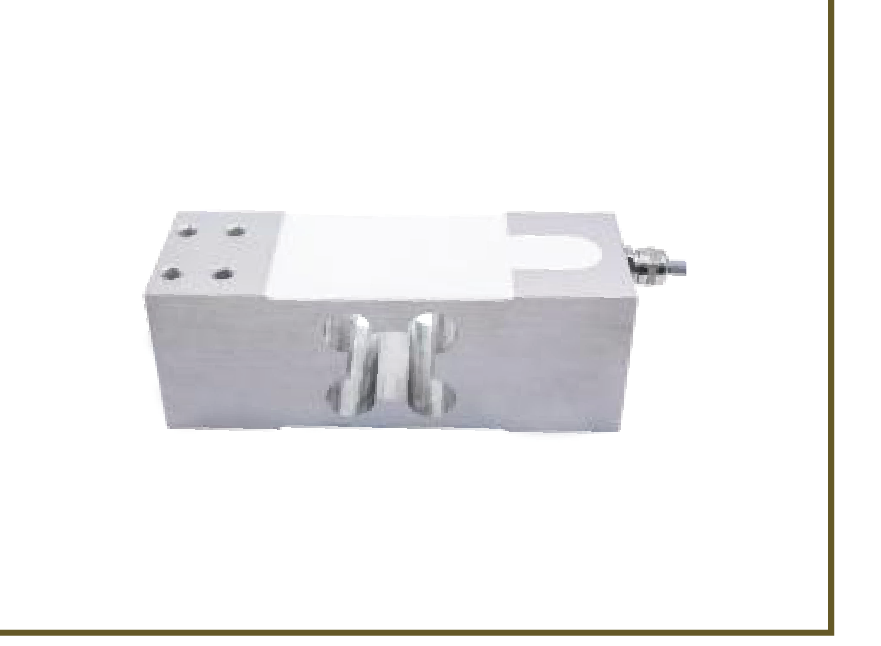

H501-05 Single-Point Weighing Load Cell

The Bonida H501-05 is a C3 single-point weighing load cell for industrial weighing platforms and equipment integration. Verified technical specifications (source catalog page 25): • Capacity: 60 to 1200 kg • Accuracy class: C3 • Rated output: 2.0 ±5% mV/V • Zero balance: ±0.02 mV/V • Creep: 0.017% F.S. • Non-linearity: 0.017% F.S. • Hysteresis: 0.017% F.S. • Repeatability: 0.017% F.S. • Input impedance: 410 ±15 Ω • Output impedance: 350 ±5 Ω • Temperature effect on sensitivity: 0.02% F.S./10°C • Temperature effect on zero: 0.03% F.S./10°C • Insulation resistance: ≥5000 MΩ/50 VDC • Recommended excitation: 5–12 V • Maximum excitation: 15 V • Compensated temperature range: -10 to 40°C • Operating temperature range: -20 to 60°C • Safe overload: 150% F.S. • Ultimate overload: 200% F.S. • Cable: Ø5 mm × 2 mm (as printed in the catalog) • Material: Aluminium alloy Public pricing is not displayed. Please submit an RFQ to confirm the required capacity, quantity, integration details and lead time.
