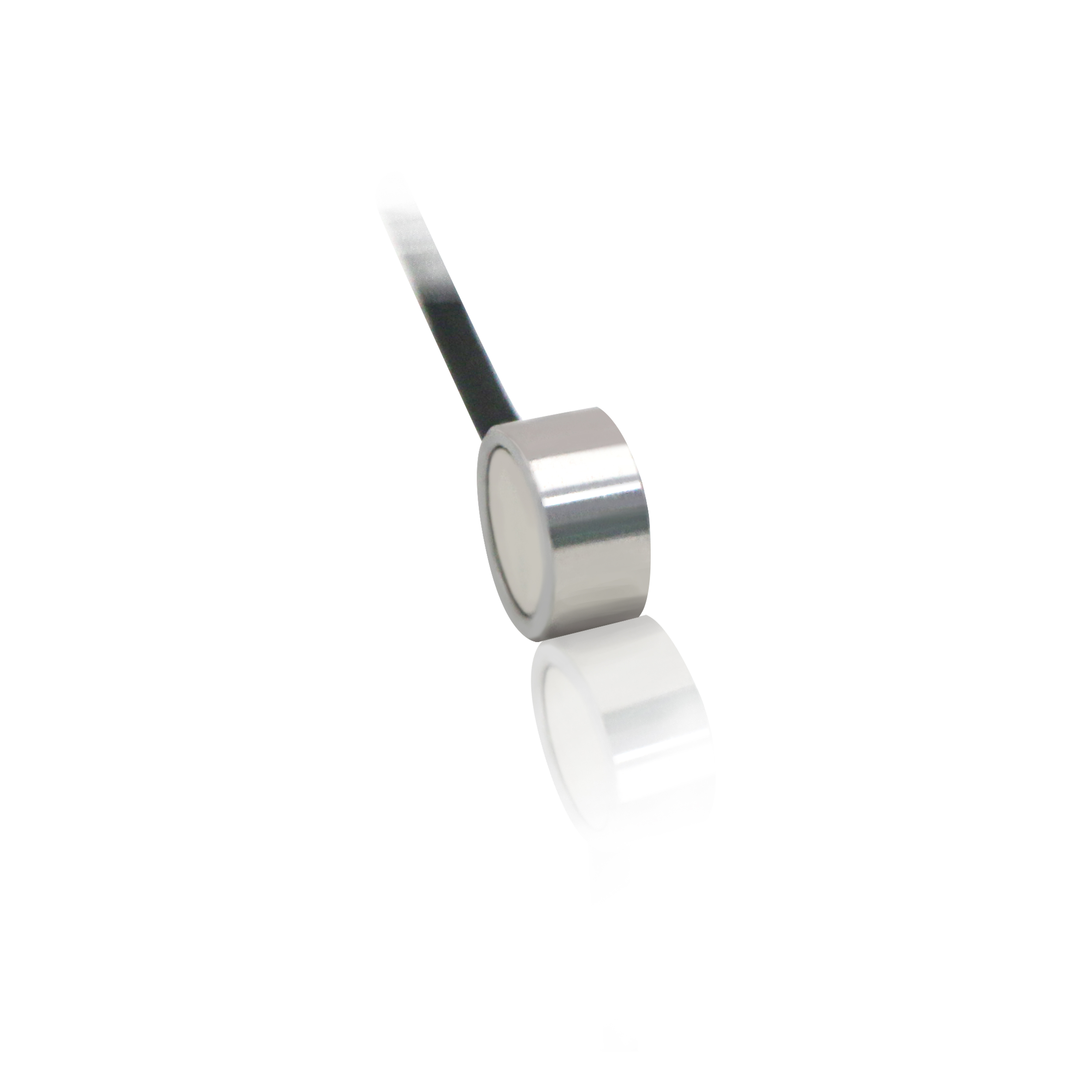

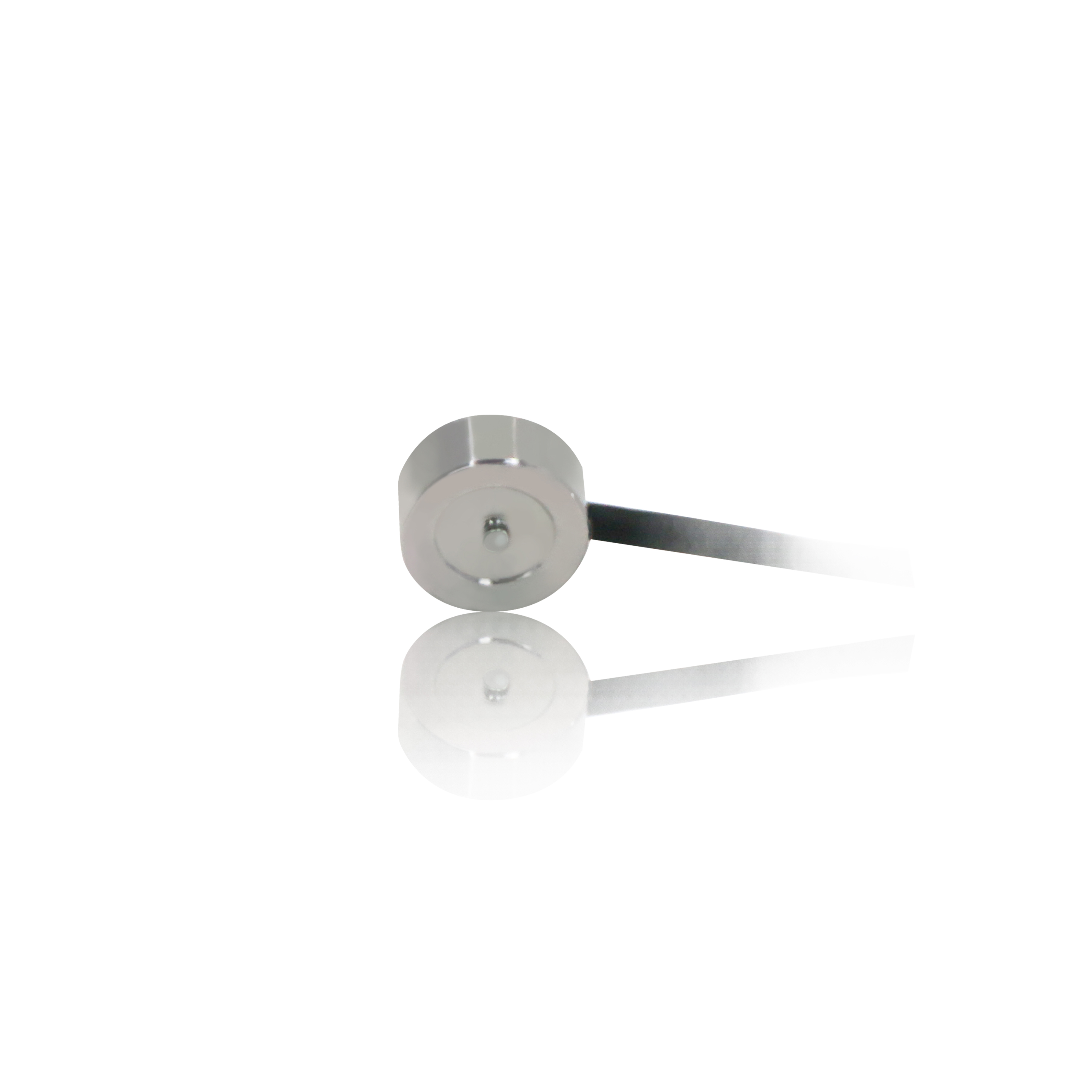

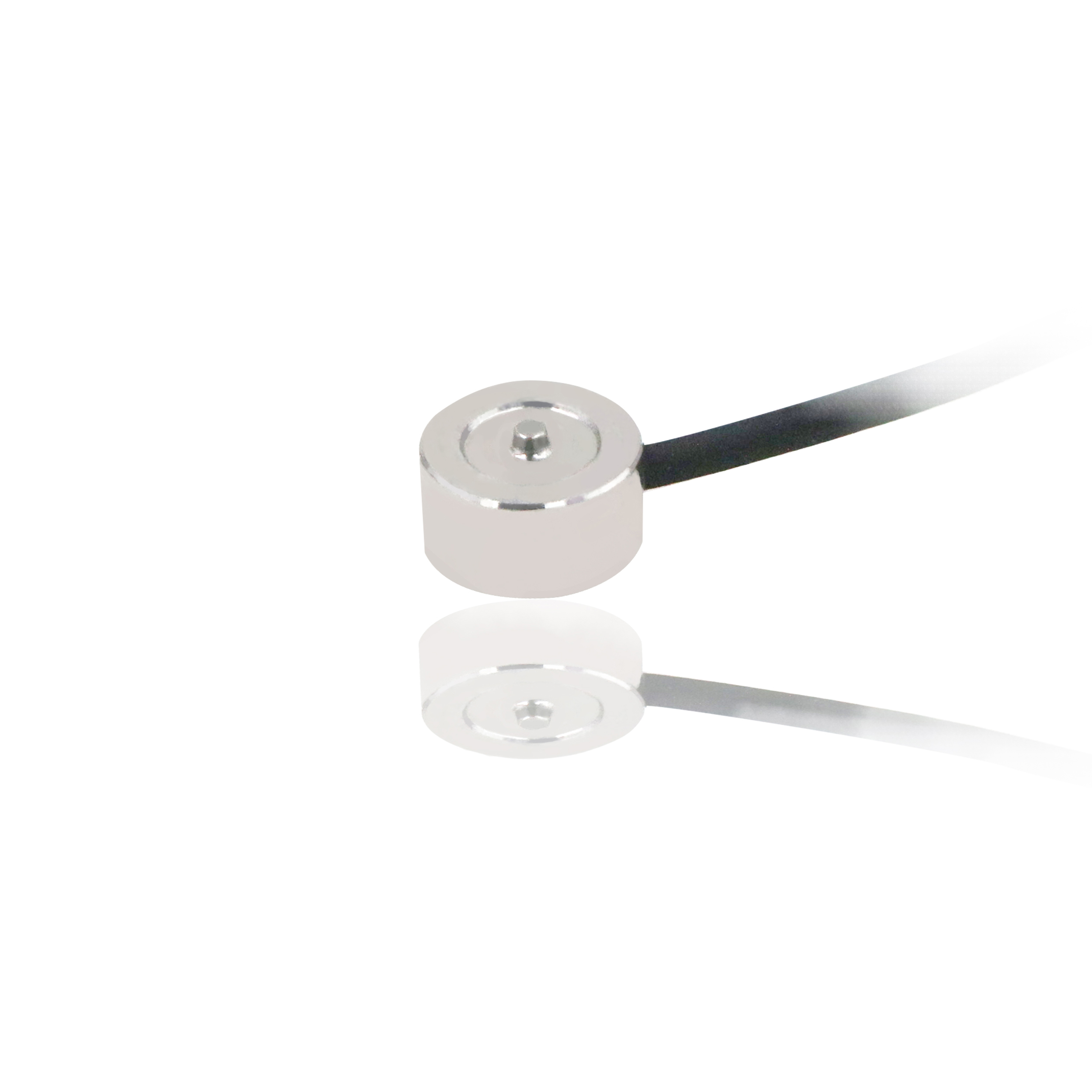

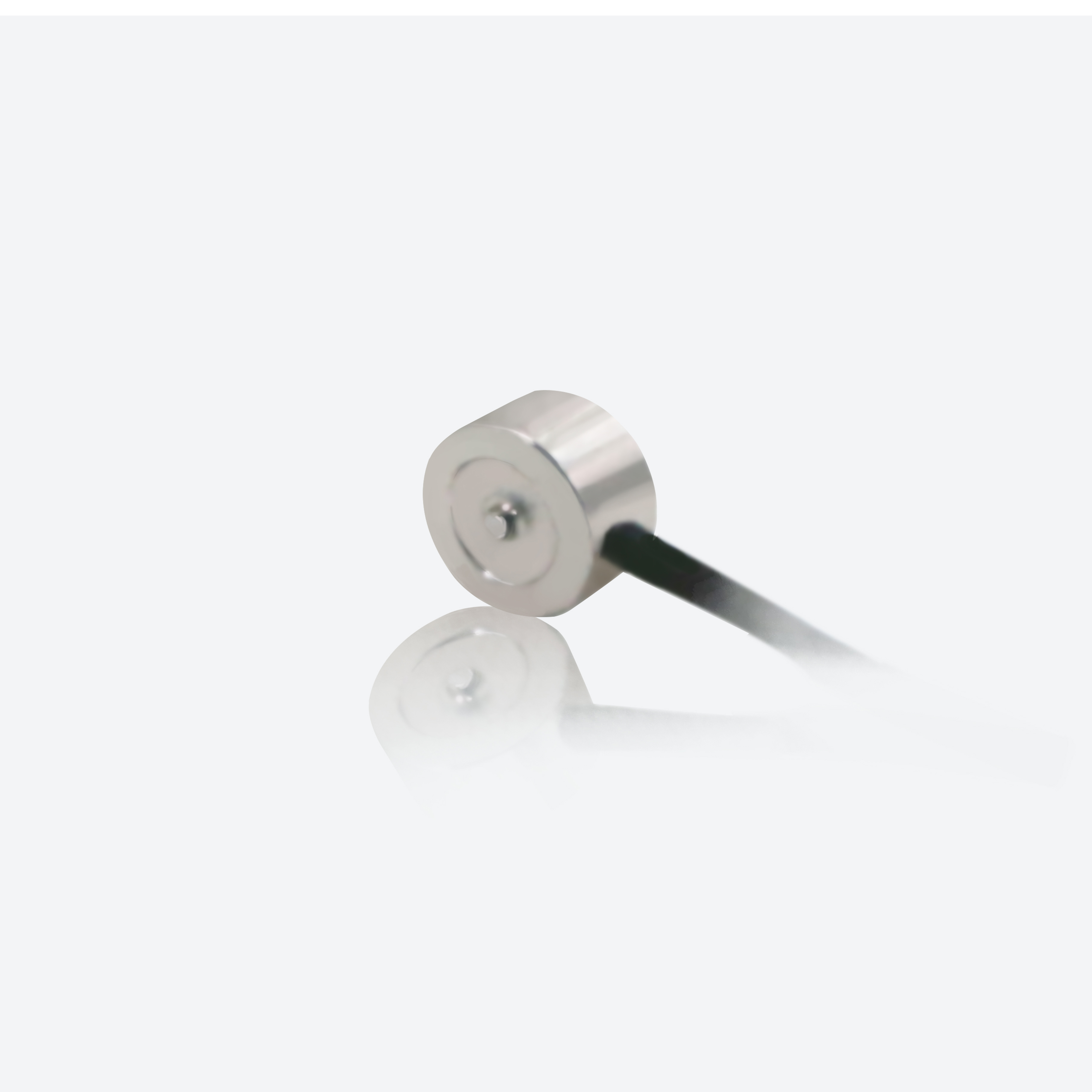

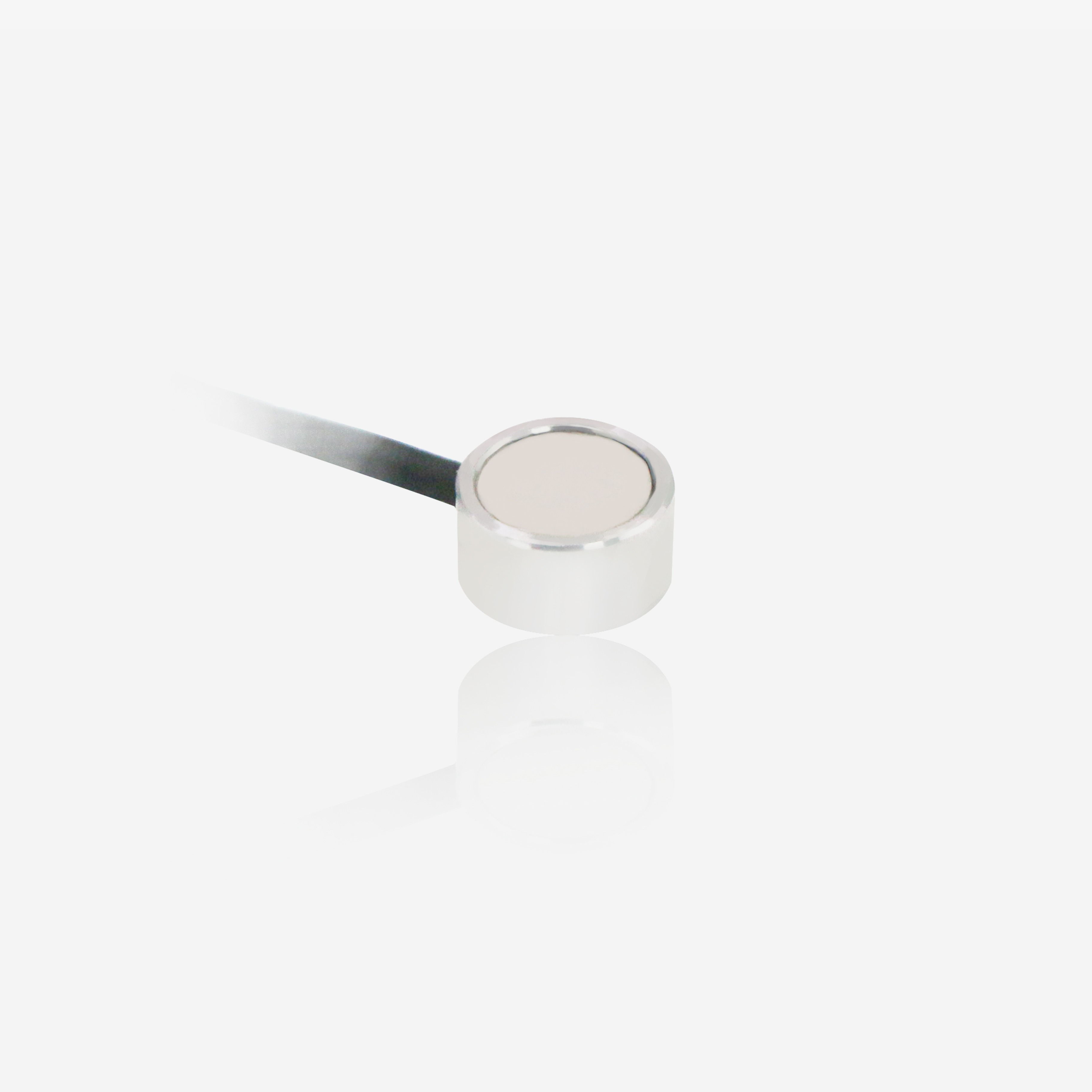

H101-01 Miniature Compression Load Cell

The H101-01 is a miniature compression load cell designed for force and weight measurement in applications with limited installation space. It is manufactured from stainless steel and is available in rated capacities of 5 kg, 10 kg, 20 kg, 50 kg and 100 kg. The sensor provides a rated output of 1.0±30% mV/V and supports a recommended excitation voltage of 5–10 VDC. It features a safe overload capacity of 150% F.S. and an ultimate overload capacity of 200% F.S. The H101-01 is suitable for compact weighing systems, force measurement equipment, testing devices and industrial automation applications. During installation, the load must be applied vertically to the raised central loading boss. Loads should not be applied to other surfaces. Custom capacity, cable and integration requirements can be discussed according to the application.
