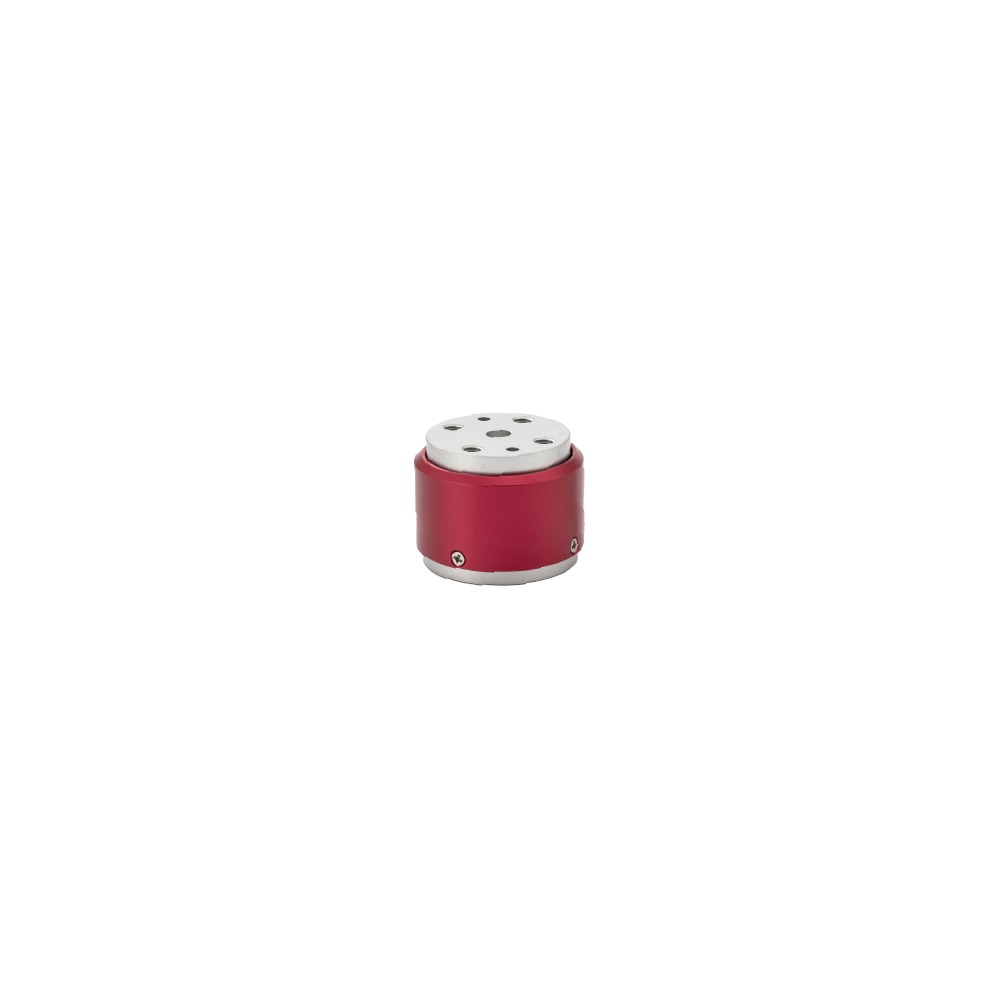

H601-01 Static Torque Sensor

Compact static torque sensor for torque measurement, test equipment and industrial assembly applications. Available ranges: 0.1, 0.2, 0.5, 1, 2, 3, 5 and 10 N.m. Rated output: 1.5 +/-10% mV/V. Nonlinearity: <=0.1% FS; hysteresis and repeatability: <=0.05% FS. Recommended excitation: 5-15 V; maximum 20 V. Operating temperature: -20 to 80 C. Safe overload: 150% FS; ultimate overload: 200% FS. Aluminum-alloy construction with IP65 ingress protection. Available from Bonida for industrial integration and custom supply. Final range, mounting interface and wiring should be confirmed during RFQ review.
