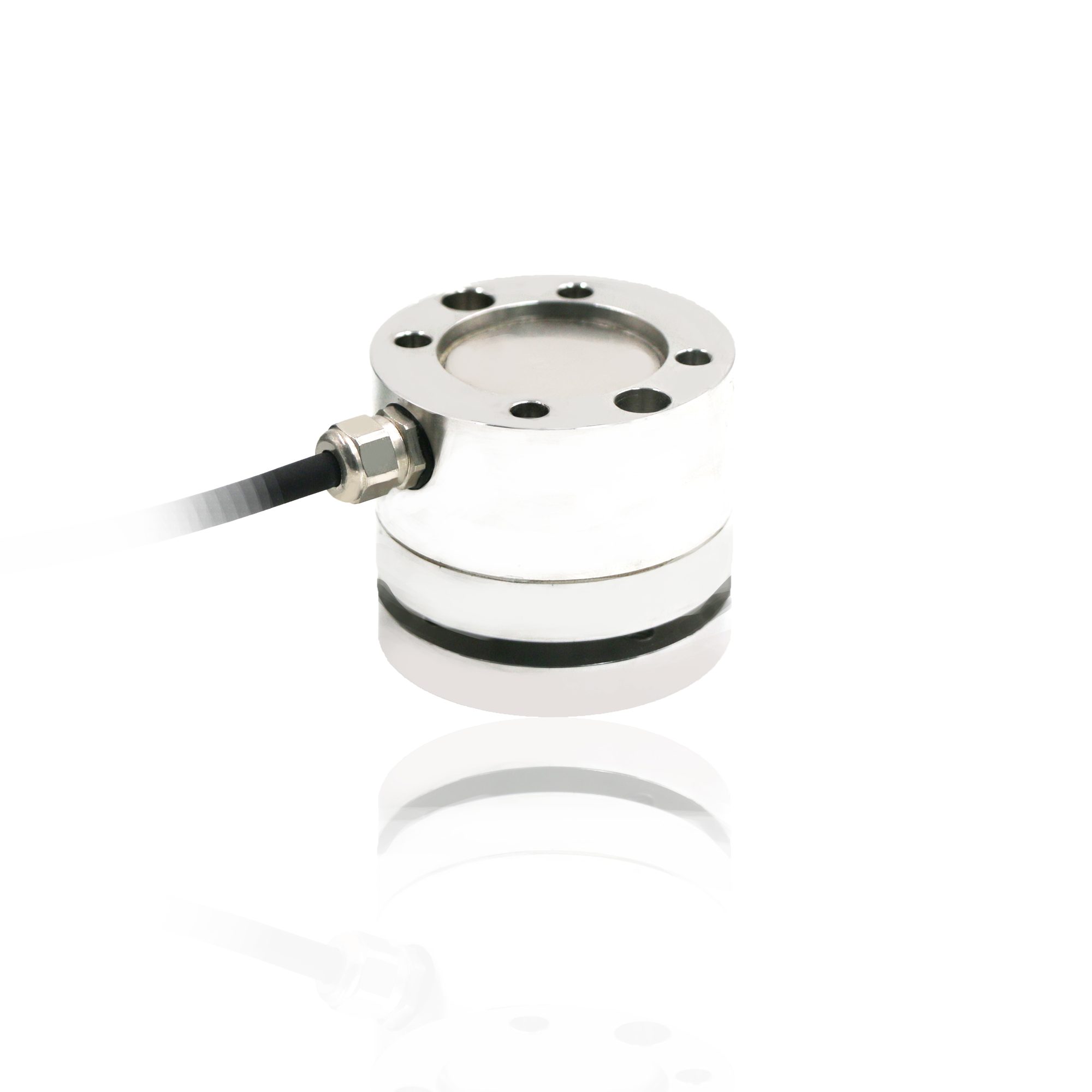

H401-07 Button Tension and Compression Load Cell

The Bonida H401-07 is a button tension and compression load cell for industrial force measurement and equipment integration. Verified technical specifications (source catalog page 22): • Capacity: 2, 5, 10, 20, 50, 100, 200 kg • Comprehensive accuracy: 0.05% full scale • Rated output: 2.0 ±0.025 mV/V • Zero balance: ±1% F.S. • Creep: ±0.1% F.S./20 min • Input impedance: 387 ±50 Ω • Output impedance: 350 ±5 Ω • Insulation resistance: ≥5000 MΩ • Recommended excitation: 10 VDC • Compensated temperature range: -10 to 40°C • Operating temperature range: -30 to 70°C • Safe overload: 150% F.S. • Protection: IP67 • Material: Aluminium alloy Public pricing is not displayed. Please submit an RFQ to confirm the required capacity, quantity, integration details and lead time.
