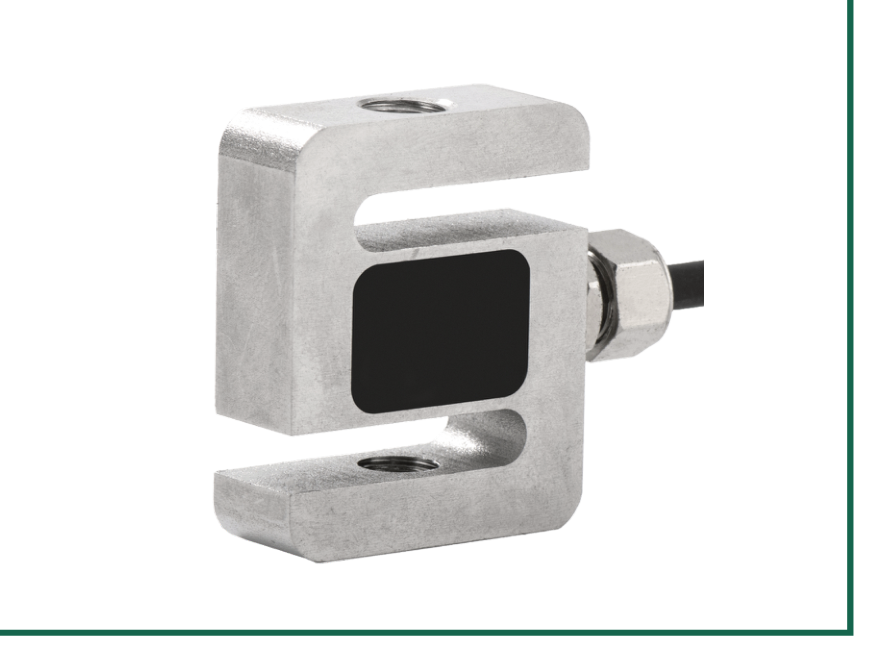

H301-03 S-Type Tension and Compression Load Cell

The Bonida H301-03 is an S-type tension and compression load cell for industrial force measurement and equipment integration. It is constructed from stainless steel and rated IP65. Verified technical specifications (source catalog page 17): • Capacity: 5, 10, 20, 50, 100 kg • Rated output: 1.0–2.0 mV/V • Zero balance: ±0.05 mV/V • Creep: ±0.05% F.S. • Non-linearity: ±0.05% F.S. • Hysteresis: ±0.05% F.S. • Repeatability: ±0.05% F.S. • Input impedance: 650/350 ±5 Ω • Output impedance: 650/350 ±5 Ω • Temperature effect on sensitivity: ±0.05% F.S./10°C • Temperature effect on zero: ±0.05% F.S./10°C • Insulation resistance: ≥5000 MΩ/50 VDC • Recommended excitation: 5–10 VDC • Maximum excitation: 15 VDC • Compensated temperature range: -10 to 40°C • Operating temperature range: -20 to 60°C • Safe overload: 150% F.S. • Ultimate overload: 200% F.S. • Cable: Ø3.0 × 3000 mm • Protection: IP65 • Material: Stainless steel Public pricing is not displayed. Please submit an RFQ to confirm the required capacity, quantity, integration details and lead time.
