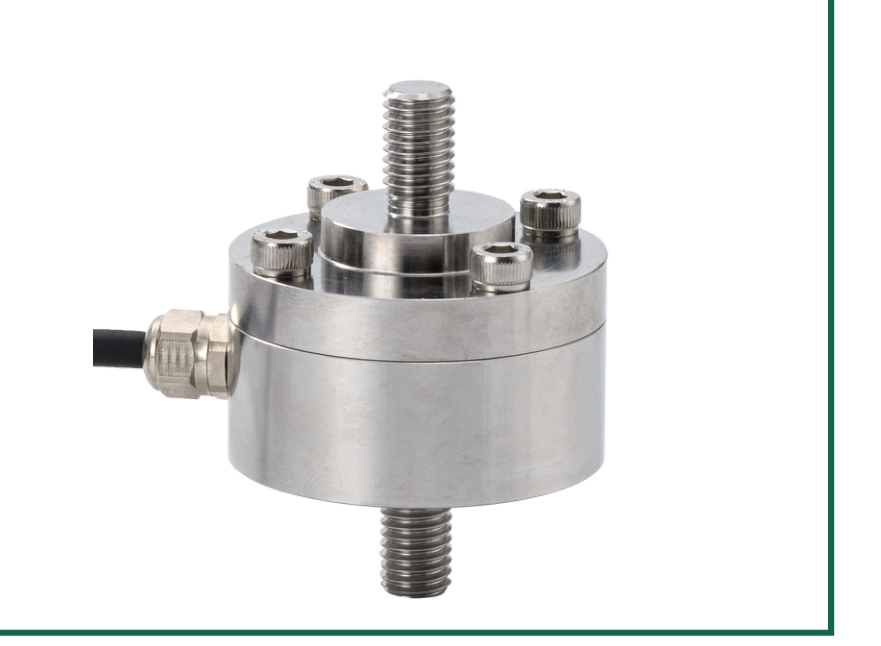

H201-04 Threaded Tension and Compression Load Cell

The H201-04 Threaded Tension and Compression Load Cell is a stainless-steel load cell for bidirectional force measurement. Contact Bonida CNC for configuration and quotation. Technical Specifications Capacity: 0.1, 0.2, 0.5, 1, 2, 3, 5 t Rated output: 1.5 ±10% mV/V Zero balance: ±0.03% F.S. Creep: ≤0.1% F.S. Non-linearity: ≤0.2% F.S. Hysteresis: ≤0.1% F.S. Repeatability: ≤0.1% F.S. Input impedance: 780 ±20 Ω Output impedance: 700 ±10 Ω Temperature effect on sensitivity: 0.1% F.S./10°C Temperature effect on zero: 0.1% F.S./10°C Insulation resistance: ≥5000 MΩ/100 VDC Recommended excitation: 5-12 V Maximum excitation: 15 V Compensated temperature range: -10 to 60°C Operating temperature range: -20 to 80°C Safe overload: 150% F.S. Ultimate overload: 200% F.S. Cable: Ø4 × 3000 mm Material: Stainless steel
