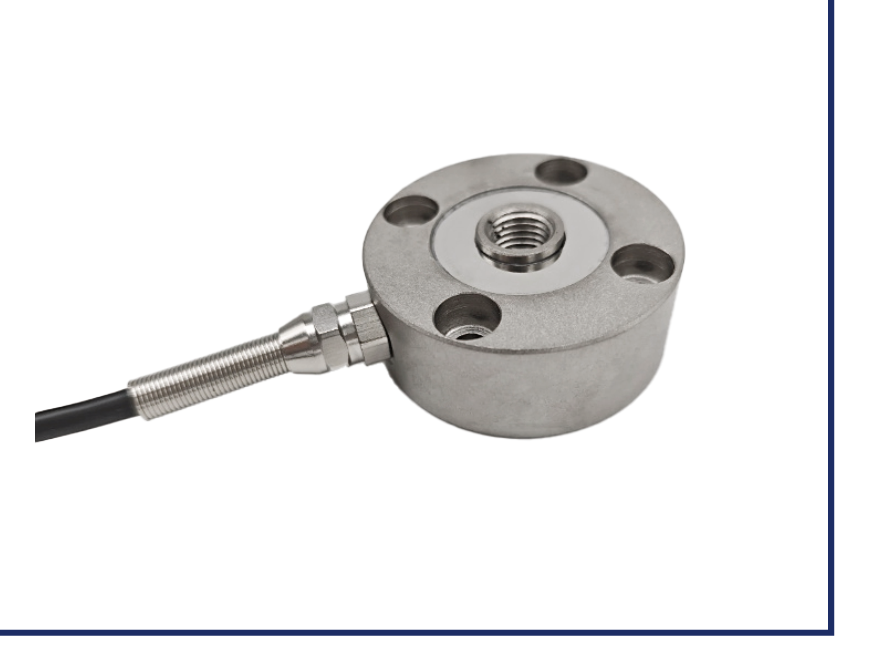

H101-12 Miniature Compression Force Sensor

H101-12 Miniature Compression Force Sensor for compression force measurement in industrial equipment, test rigs and weighing systems. Technical specifications (source: supplied product catalog): Capacity: 50, 100, 200, 500 kg Rated output / sensitivity: 2.0 ±0.05 mV/V Zero balance: ±0.02 mV/V Creep: 0.1% F.S. Non-linearity: 0.1% F.S. Hysteresis: 0.1% F.S. Repeatability: 0.1% F.S. Input impedance: 750~50 Ω Output impedance: 700~10 Ω Temperature effect on sensitivity: 0.1% F.S./10°C Temperature effect on zero: 0.1% F.S./10°C Insulation resistance: ≥2000 MΩ/50 VDC Recommended excitation: 5–10 V Maximum excitation: 15 V Operating temperature range: -20 to +60°C Safe overload: 150% F.S. Ultimate overload: 200% F.S. Cable: Ø5 × 3000 mm Protection: IP65 Material: Alloy steel Installation: spoke-type installation. Refer to the model drawing for dimensions and specify the required capacity when requesting a quotation.
