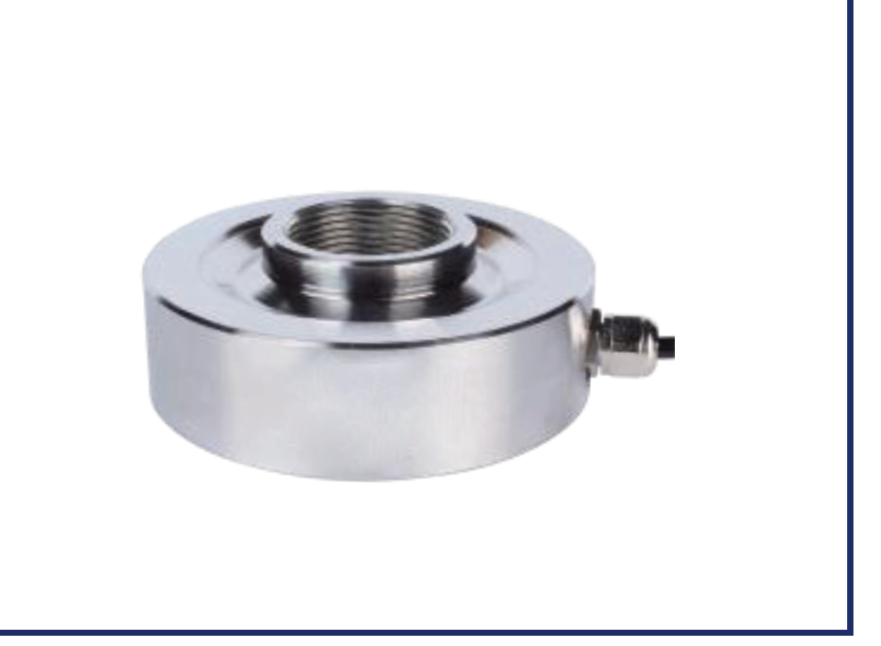

H101-11 Miniature Compression Force Sensor

H101-11 Miniature Compression Force Sensor for compression force measurement in industrial test rigs, equipment integration and weighing systems. Technical specifications (source: supplied product catalog): Capacity: 0.5, 1, 2, 5, 10 t Rated output / sensitivity: 1.5 ±30% mV/V Zero balance: ±3% mV/V Creep: ≤0.1% F.S. Non-linearity: ≤0.2% F.S. Hysteresis: ≤0.2% F.S. Repeatability: ≤0.1% F.S. Input impedance: 780 ±20 Ω Output impedance: 700 ±5 Ω Temperature effect on sensitivity: 0.1% F.S./10°C Temperature effect on zero: 0.1% F.S./10°C Insulation resistance: ≥5000 MΩ/100 VDC Recommended excitation: 5–10 V Maximum excitation: 15 V Compensated temperature range: -10 to 60°C Operating temperature range: -20 to 80°C Safe overload: 150% F.S. Ultimate overload: 200% F.S. Cable: Ø4 × 3 m Material: Stainless steel Protection: IP65 Installation: center-hole threaded mounting. Refer to the model drawing for dimensions and confirm the required capacity and interface when requesting a quotation.
